Magazine-based PCBA testing automation for High-Mix, Low-Volume production

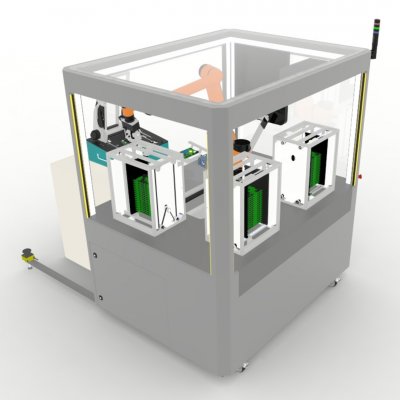

Compact M is the PCB Compact Series variant for factories that store and handle PCBAs in magazines. It provides a compact automation setup for fixture-based testing while keeping material input, OK output, and NG/NOK output within a magazine-based production flow.
Simple magazine handling: Use magazines as the main input and output method for organized PCBA testing.
Fast manipulation cycle: Benefit from an average manipulation time of 20 seconds per cycle.
Compact automation for shorter batches: Support roughly 30-minute windows of autonomous testing in a compact workstation setup.
For comparison of Compact Series products, head over to the products page.
| Parameter | Value |
|---|---|
| Material input and output | Magazine |
| NG/NOK output | Magazine |
| Average manipulation time per cycle | 20 seconds |
| Common autonomous runtime | 30 minutes |
Compact T is one configuration of the Test-it-off platform for automated PCBA testing. For the full overview of the system, including gripping, testing, sorting and reporting, visit the Test-it-off homepage.
Compact T uses the same Test-it-off software logic for no-code setup, monitoring, batch estimates, ERP/MES connectivity, and more. You can find these platform-level capabilities in Test-it-off features section.
